Outdoor Cable Concrete


MAGNUM Outdoor Cable Concrete

For concrete & paving

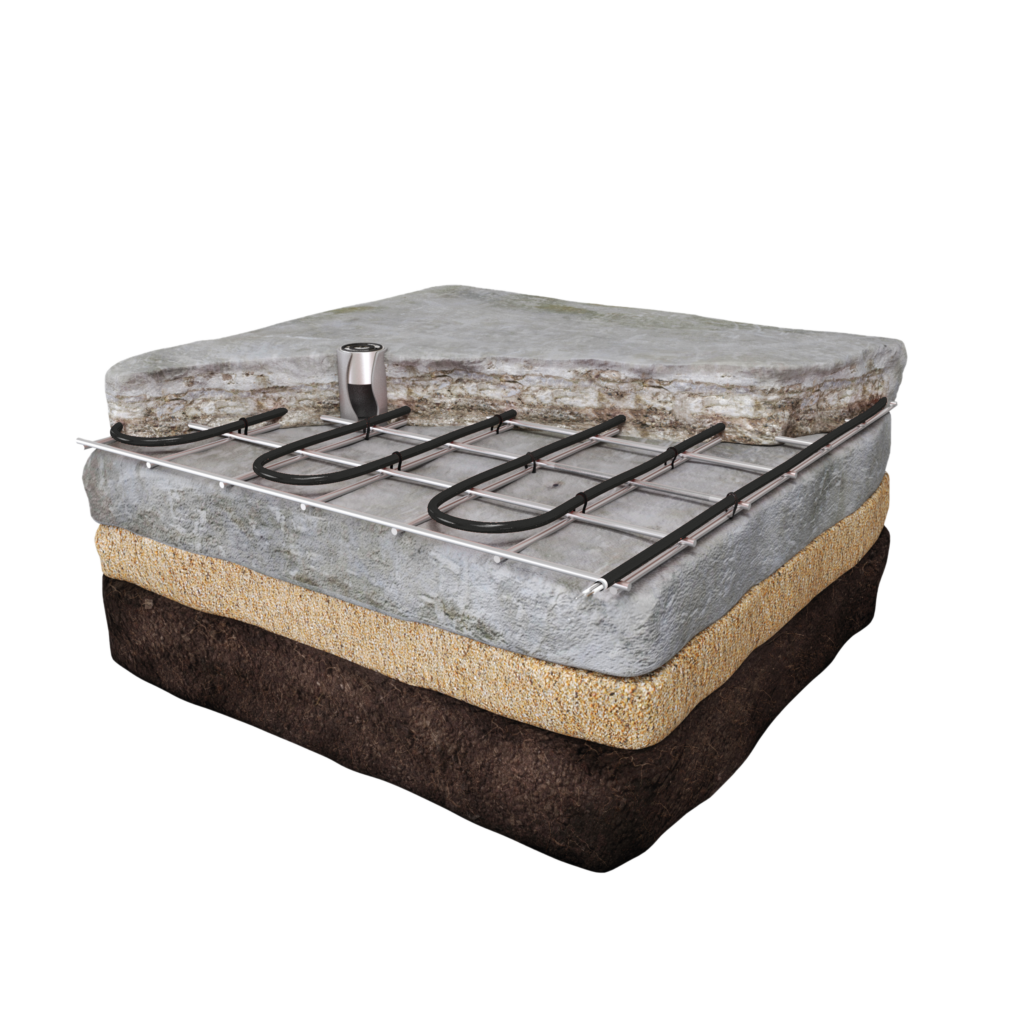

Especially for large areas, such as loading docks or driveways for car parks, where safety must be ensured. MAGNUM Outdoor Cable can be fixed directly to the reinforcement before the sand bed, concrete or asphalt is poured.

MAGNUM Outdoor is a highly advanced system of heating cables, 2 sensor units that measure humidity in combination with the outdoor temperature and a custom-made control cabinet.

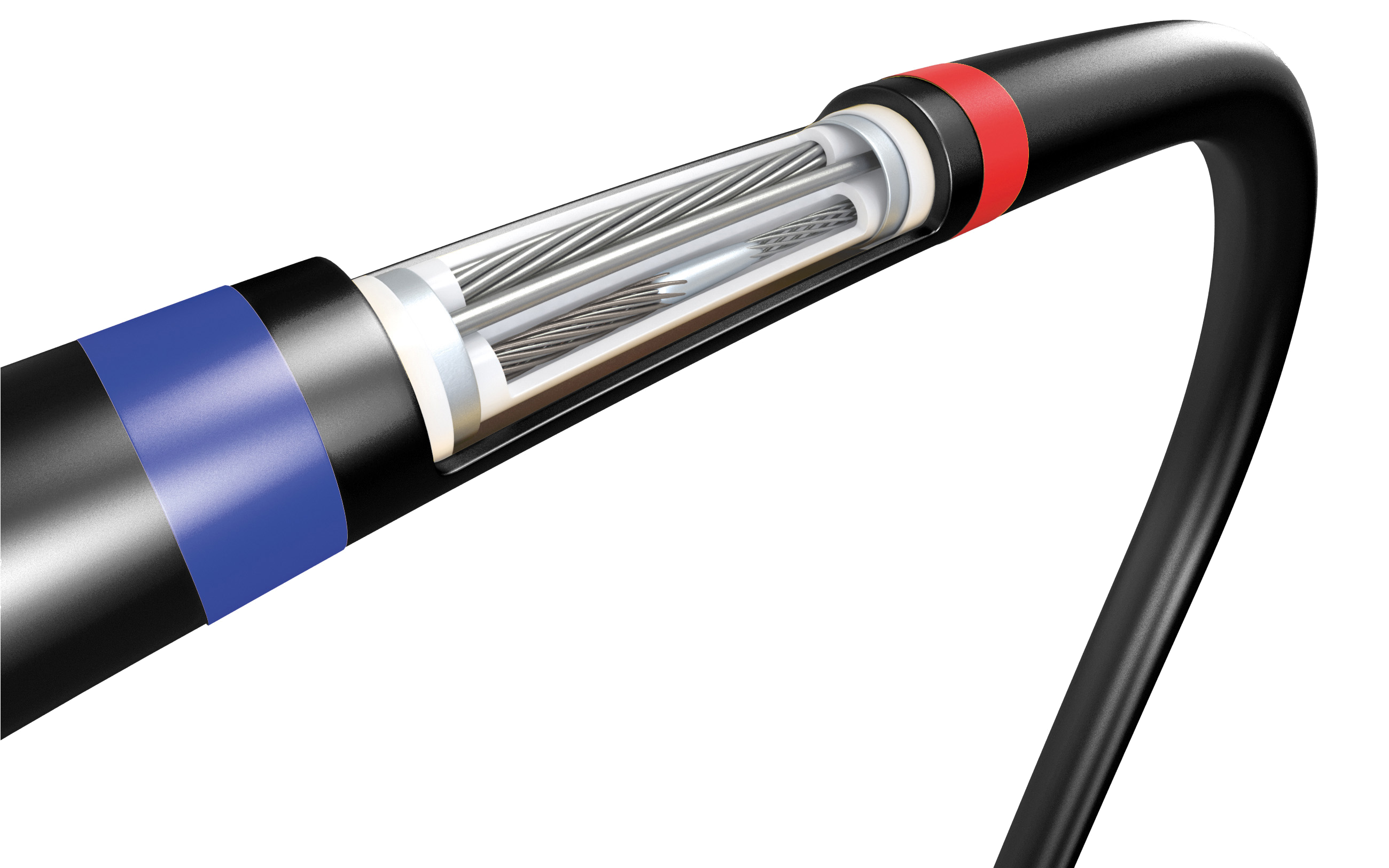

The power supply cable is uniquely connected to the resistance wire. The aluminium reinforcement jacket protects the resistance wires against mechanical damage and shields the cable against EMC (electromagnetic radiation). This has the advantage that the cable does not interfere with mobile phones, electrically operated garage doors and gates, security installations etc.

The cable is equipped with XLPE inner sheaths and a PVC outer sheath that is resistant to the action of chemicals.

Complete systems

MAGNUM Outdoor installations are specially drawn and designed per order. A complete watertight control cabinet (IP-65) is manufactured and fitted out in proportion to the number of cables/mats and power. For larger projects, the control cabinet can be expanded to include modulating power regulators up to 50kW that prevent peak loads and also save energy. The system can be implemented in both 230V and 400V.

Installation methods (complete systems)

MAGNUM Outdoor systems are calculated and designed per order.

Art.nr. DescriptionLengthLength connecting wirePowerVoltAmpsOhm
120308MAGNUM Outdoor Cable Concrete 30W/m110 m4 m300 Watt230V1,3176
120458MAGNUM Outdoor Cable Concrete 30W/m115 m4 m450 Watt230V2,0118
120608MAGNUM Outdoor Cable Concrete 30W/m120 m4 m600 Watt230V2,688
120758MAGNUM Outdoor Cable Concrete 30W/m125 m4 m750 Watt230V3,371
120908MAGNUM Outdoor Cable Concrete 30W/m130 m4 m900 Watt230V3,959
121208MAGNUM Outdoor Cable Concrete 30W/m140 m4 m1200 Watt230V5,244
121508MAGNUM Outdoor Cable Concrete 30W/m150 m4 m1500 Watt230V6,535
121808MAGNUM Outdoor Cable Concrete 30W/m160 m4 m1800 Watt230V7,829
122108MAGNUM Outdoor Cable Concrete 30W/m170 m4 m2100 Watt230V9,125
122408MAGNUM Outdoor Cable Concrete 30W/m180 m4 m2400 Watt230V10,422
123008MAGNUM Outdoor Cable Concrete 30W/m1100 m4 m3000 Watt230V13,018
123408MAGNUM Outdoor Cable Concrete 30W/m1113 m4 m3400 Watt230V14,816
123608MAGNUM Outdoor Cable Concrete 30W/m1120 m4 m3600 Watt230V15,715
124208MAGNUM Outdoor Cable Concrete 30W/m1140 m4 m4200 Watt230V18,313
Art.nr. LengthLength connecting wirePowerVoltAmpsOhm
12030810 m4 m300 Watt230V1,3176
12045815 m4 m450 Watt230V2,0118
12060820 m4 m600 Watt230V2,688
12075825 m4 m750 Watt230V3,371
12090830 m4 m900 Watt230V3,959
12120840 m4 m1200 Watt230V5,244
12150850 m4 m1500 Watt230V6,535
12180860 m4 m1800 Watt230V7,829
12210870 m4 m2100 Watt230V9,125
12240880 m4 m2400 Watt230V10,422
123008100 m4 m3000 Watt230V13,018
123408113 m4 m3400 Watt230V14,816
123608120 m4 m3600 Watt230V15,715
124208140 m4 m4200 Watt230V18,313


Sand bed + bricksV
Cold asphaltX
Asphalt < 240oCX
Inner jacketXLPE
Outer jacketPVC
Length of connecting wire4 m
Power30 Watt/m1
Connection voltage230 V/50Hz
CertificationIEC 800, CE, VDE, IPX7
Warranty10 year

Technical details

  • Power 30 Watt/m1
  • Cables available from 300 to 4200 Watt
  • Connection voltage 230 V/50Hz
  • Standards IEC 800 and CE
  • Certification VDE
  • Class IPX7
  • Core insulation XLPE

Installation methods (complete systems)
MAGNUM Outdoor systems are calculated and designed per order.

MAGNUM Outdoor Cable has a 10 year warranty on the electrical function of the cable.
